8 Nti Capacitive Touch Vaj Huam Sib Luag
8 nti capacitive kov vaj huam sib luag
Qauv: FT6647
Hom Lub Npe: Head Sun Co., Ltd
Xim ciam teb: Dub
Qauv: G+F+F
Interface: IIC
Kov cov ntsiab lus: 10 Points
Tag nrho Thickness: 3.35mm
Qhov Loj: 129.00 ± 0.1mm * 324.60 ± 0.1mm
Hauj lwm lawm
Product Description:
Khoom kos duab:
Khoom Specifications:
8 nti capacitive kov vaj huam sib luag | |
Cov yam ntxwv zoo | |
Khoom Loj | 8 nti |
Cov qauv khoom | G+F+F |
Daim duab Dimension | 129.00 ± 0.1 hli * 324.60 ± 0.1 hli |
Saib cheeb tsam | 103.00 ± 0.2 hli * 180.00 ± 0.2 hli |
Tag nrho Thickness | 3.35mm ib |
Cov yam ntxwv hluav taws xob | |
IC hom | TSI 2511 (16*28) |
Kov cov ntsiab lus | 10 Cov ntsiab lus |
Interface | IIC |
Kev khiav hauj lwm voltage | |
Cov kev xaiv ua haujlwm tshwj xeeb | |
Hom hnab looj tes | |
Waterproof Level | |
Antistatic Test | |
Cov khoom siv sab nraum zoov | |
Riot Qib / IK Qib | |
Waterproof ua haujlwm hom | |
Khoom yam ntxwv | |
Npog Lens | AGC, Thickness=3.0 hli |
ITO-FLIM | Thickness T: 0.05m B: 0.125 hli |
OCA | Thickness T: 0.125m B: 0.05 hli |
Environmental yam ntxwv | |
Kev Ua Haujlwm Kub | -20~70℃ |
Cia Kub | -30~80℃ |
Kev Ntsuam Xyuas Kev Ntseeg | |
Kev kub ceev cia | T=70℃,72H |
Tsawg-kub Cia | T=-30℃,72H |
High-temperature\High-humidity Storage | T=60℃90%,72H |
Kub poob siab | (-20 ﾟC(30min) ←(5min Max.) → 60 ﾟC(30min))=50 Set |
Electro Static Discharge | Cua paug: ± 8KV, Hu rau paug: ± 4KV |
Hardness | ≥6H |
Ball Drop Test | 64g 40cm, Tsis muaj kev tawg ntawm qhov chaw taw tes rau 3 zaug |
FPC Bending Test | Lub vojvoog dabtsi yog khoov R1.0 hli, ntau tshaj peb zaug |
Nco tseg: | |
Khoom siv:
Peb cov ntxaij vab tshaus kov tau dav siv rau cov khoom siv tswj kev lag luam, cov khoom siv hauv tsev ntse, lub qhov rooj xauv, saws tes, saib ntse, cov khoom siv coj los siv, tsheb, nkoj& nkoj, khoom siv kho mob, POS terminals, game machine thiab lwm yam teb. Lub 8 Nti capacitive kov vaj huam sib luag yog tshwj xeeb rau kev nkag mus rau ntse tswj system.
Peb qhov zoo:
1. Muaj peev xwm ntau lawm los xyuas kom meej qhov khoom xa tuaj.

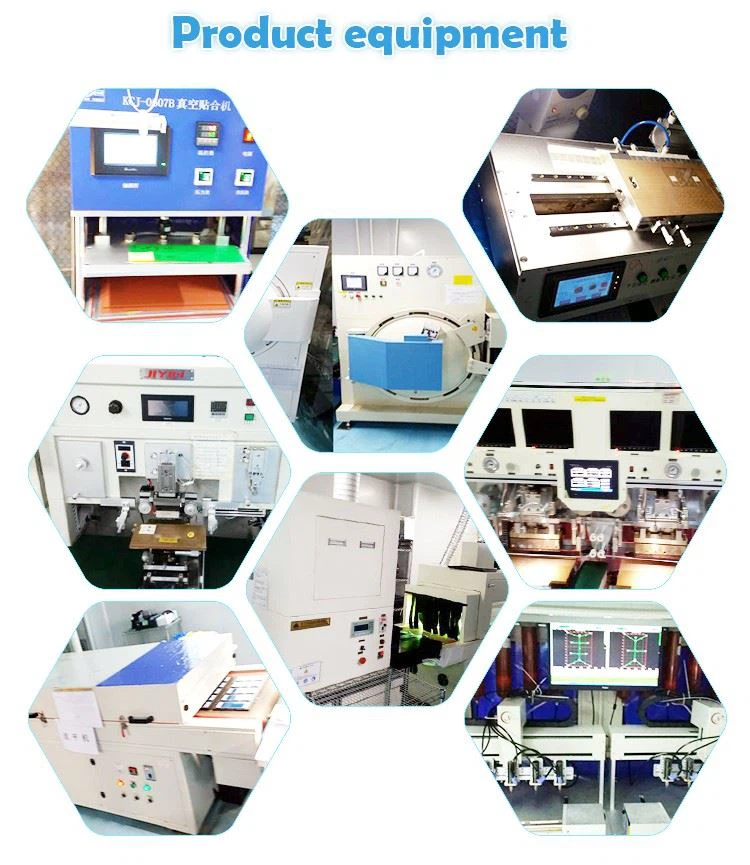

●3,000 square meters Hoobkas thiab tsis muaj plua plav rhiav, ntau tshaj 150 tus neeg ua haujlwm.
●8 kab khoom ntawm G+G& G+F+F thiab 6 cov kab khoom ntawm CTP+LCM kev sib txuas ua ke tag nrho. Cov zis txhua hli tuaj yeem ncav cuag 40,000pieces.
● Yellow sensor teeb txheej txheem + laser sensor txheej txheem.
2. Pab neeg muaj kev paub dhau los
Ntau tshaj 10 xyoo dhau los ntawm kev tshaj lij engineer pab pawg.
3. Txais OEM& ODM.
Cov neeg siv khoom tuaj yeem txiav lawv tus kheej cov khoom. Koj tsuas yog xav tau xa cov duab kos thiab cov qauv rau peb. Peb tus engineer yuav ntsuas rau koj.
4.Ntev Technology
Siv mainstream kov screen daj lub teeb txheej txheem technology.

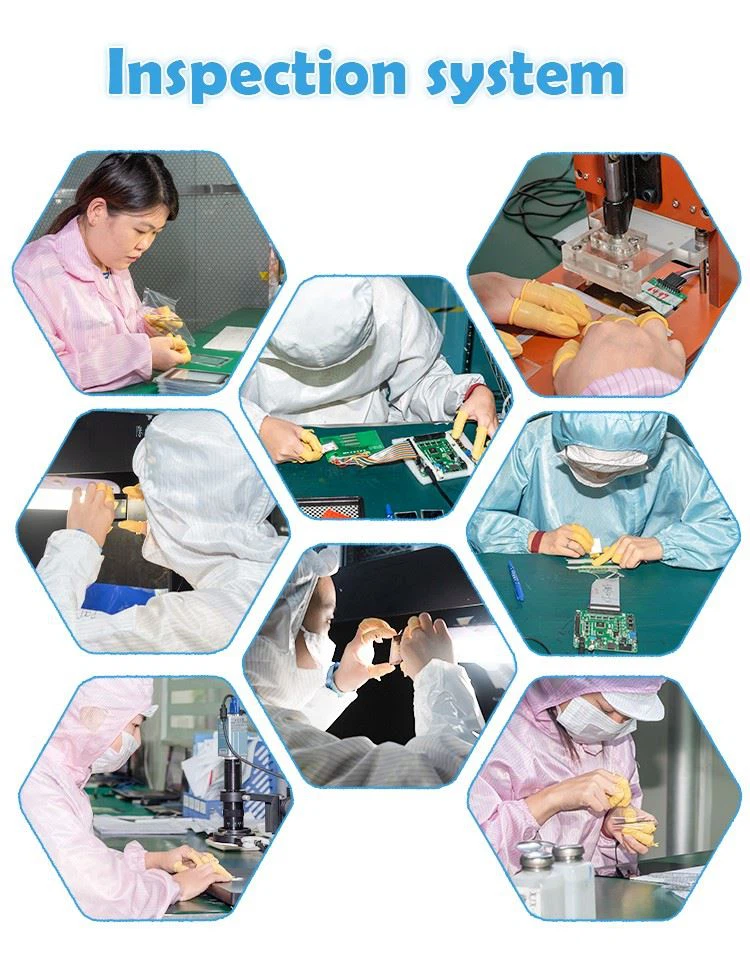

5.Strict thiab ua tiav cov kev tswj xyuas zoo thiab muaj peb tus kheej lub chaw kuaj xyuas. Yog li cov neeg siv khoom tsis tas yuav txhawj xeeb txog qhov zoo.
Q:Qhov kev ua haujlwm twg tuaj yeem txhawb nqa?
A: Txhawb Android, Windows, Linux, IOS.
Q:Kuv puas tuaj yeem yuav kov npo yam tsis tau them tus nqi tsim kho?
A: Yog. Koj tuaj yeem yuav peb cov khoom uas twb muaj lawm yam tsis tau them tus nqi txhim kho
Q:Lub neej ntev ntawm lub vijtsam kov yog dab tsi?
A: Peb lub vijtsam kov txhawb ntau dua 50 billion zaug kov.
Peb Honour thiab Certifications:Lub taub hau Sun tau ua tiav dhau ntawm kev lag luam high-tech, audited tsum thiab ISO9001 zoo tswj kev ntsuam xyuas.
